Geotechnical Bearing Capacity Calculator

The below tool is provided for you to freely use, for non-official, don't blame us, it's your responsibility type purposes. For goodness sake please don't actually use it to build anything with.

Scroll down for help filling out boxes.

The Geotechnical Bearing Capacity Calculator

Enter the SPT N Value (for reference/correlation), Shear Strength (Cohesion), Phi Angle, Footing Width, Footing Depth, and Soil Unit Weight to calculate the ultimate bearing capacity in kN/m². Note: This calculator uses a general Terzaghi's bearing capacity formula. Adjustments may be needed based on your specific sheet's correlations for factors and SPT N.



Factor of Safety

The above figure will need to be divided by the correct factor of safety. 3 is used for most stuff. So divide it by 3 to get allowable nearing pressure. That's what most people use.

Help Filling Out Boxes

Below we have provided a series of reference values you can use to fill out the boxes, the more actual field data (from the actual soil) you can put in the better.

Shear Strength

  • Very Soft ( < 20 kPa / < 0.25 tsf): Very easily deformed. It will feel like thick mud or toothpaste and will flow with slight pressure.
  • Soft ( = 20 - 40 kPa / 0.25 - 0.5 tsf): Easily deformed by finger pressure. It will feel yielding.
  • Firm ( = 40 - 75 kPa / 0.5 - 1.0 tsf): Deformed with noticeable effort. It will resist moderate pressure but will still change shape.
  • Stiff ( = 75 - 150 kPa / 1.0 - 2.0 tsf): Deformed with great difficulty. Requires significant effort to change its shape.
  • Very Stiff to Hard ( > 150 kPa / > 2.0 tsf): Cannot be easily deformed by hand pressure. It will feel like a hard lump.

    • Phi Angle

    If you want you can put a zero "0" in the Phi Angle box. Put zero in for Clays. This will give you the weakest value, at end of calculation. But if you have an N Value (From an SPT Test) then you can use that to estimate Phi.

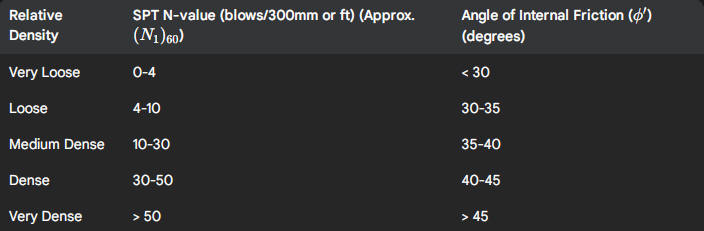

    For gravels and sands and such you can use:

    phi_angle_N_value_corelation

    Footing Dimensions

     Type in dimensions of your footing here.

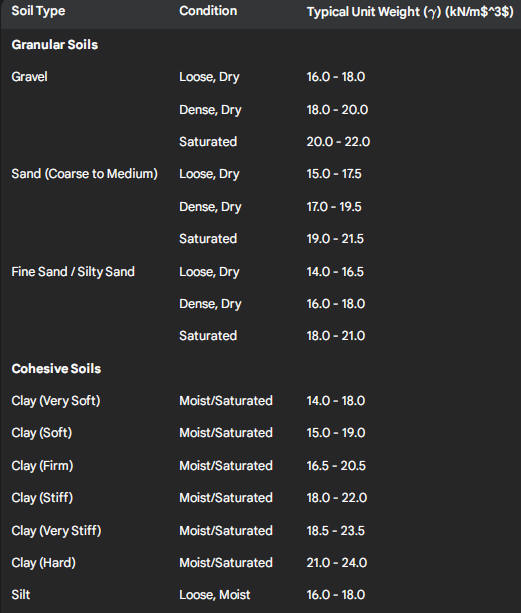

    Soil Weight

    soildesnitys_by_type_KNM3

































    Help Filling Out Boxes

    Hopefully you will find this handy. Please don't use it for anything important.
